LabTech Isotope-S8-2 Fully Automatic Radionuclide Solid Phase Extraction Instrument-LabTech

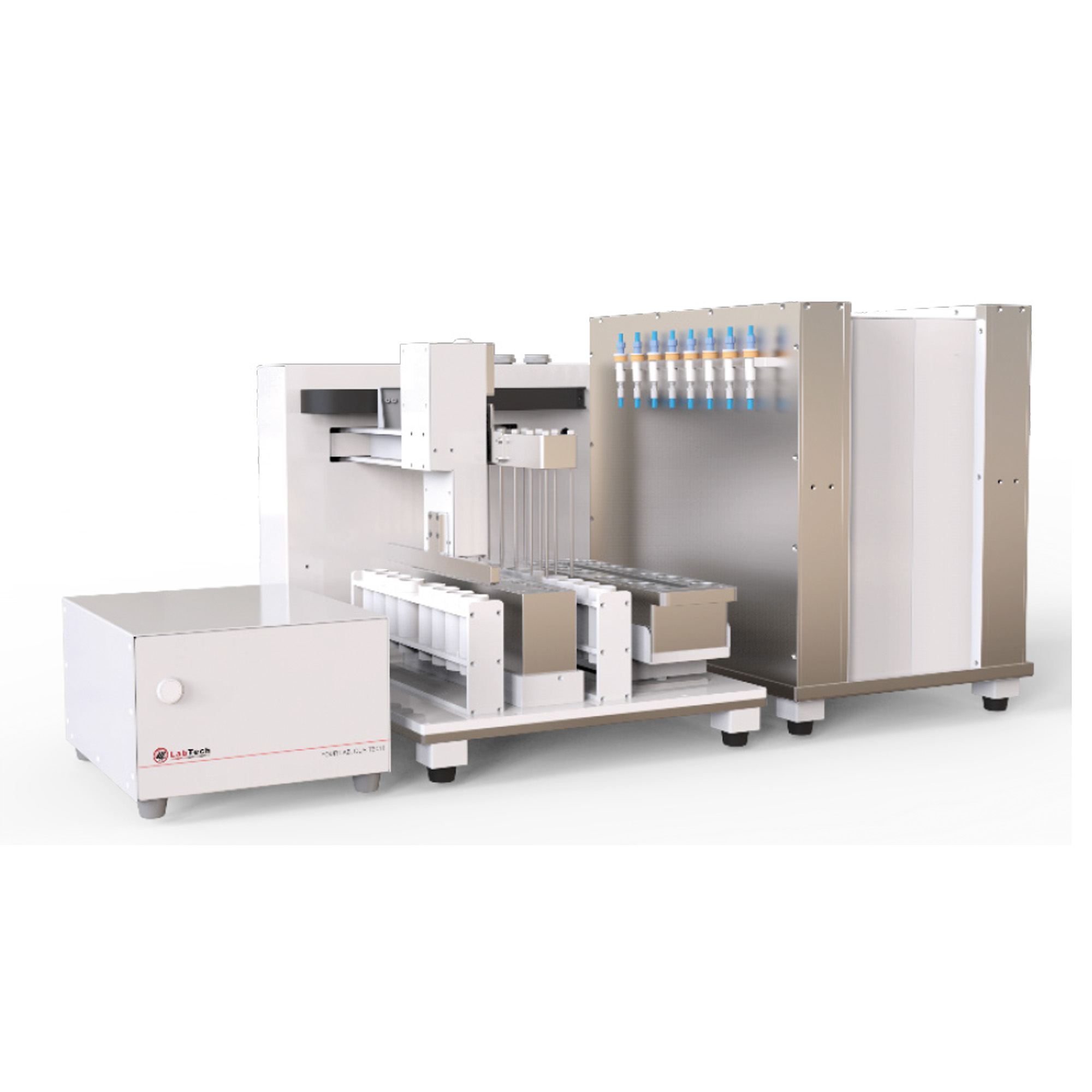

LabTech Isotope-S8-2 Fully Automatic Radionuclide Solid Phase Extraction Instrument

The Isotope-S8-2 can be used inside a glovebox or in external environments. Through its programmed procedures, it automatically performs sample dilution, adjustment and mixing, cartridge activation, sample loading, bottle cleaning, washing, and elution. Compact in size, it occupies minimal space while handling large sample volumes. The system features 8 channels, allowing users to select the number of active channels as needed for radionuclide separation. With pre-installed software, one-button operation, and fully automated workflows, the Isotope-S8-2 reduces personnel exposure to radiation, making it an excellent choice for users.

Inquire Now

Key Features
Application & Industries
Resources
Videos

Key Features

Modular Design: Control module is external, making operation user-friendly.
Compact and Efficient: Small footprint, capable of automatically performing dilution, adjustment/mixing, cartridge activation, sample loading, bottle cleaning, washing, and elution.
High-Precision Syringe Pumps: Available in different specifications to ensure accurate dilution.
Corrosion-Resistant Platform: Features a mechanical arm module and custom sealed covers for syringe pump modules.
Coated Sampling Needle: Uses PTFE tubing internally, 316L stainless steel externally, with a PTFE surface coating for corrosion resistance and durability.
Maintains Cartridge Wetness: During the entire process, no air enters the extraction cartridge, keeping it in an optimal state.
Zero Sample Loss Loading: Sample is completely loaded via the sampling needle with coordinated valve switching for direct cartridge separation.
Spray Bottle Cleaning: Sample bottles are washed and then fully reloaded, improving sample recovery.
Two/Three-Stage Needle Cleaning: Ensures thorough cleaning of the sampling needle and prevents cross-contamination.
Fully Automated Process: No manual intervention needed; control software provides real-time monitoring of experimental progress.

Nuclear

Suitable for the rapid separation of low-concentration radionuclides within gloveboxes or controlled environments. It can perform sample adjustment, extraction (and back-extraction), washing, and source preparation, addressing common issues such as sample carryover, loss, and contamination of container walls during the extraction process. This prevents measurement errors caused by insufficient removal of impurity radionuclides during multiple extractions and avoids interference from other radionuclides introduced into the operational environment during source preparation.

The system uses automated procedures for sampling, cartridge loading, and elution to achieve radionuclide separation. A dedicated software workstation allows adjustable flow rates and remote control of all programs, enabling the rapid separation of low-concentration radionuclides in process samples.
