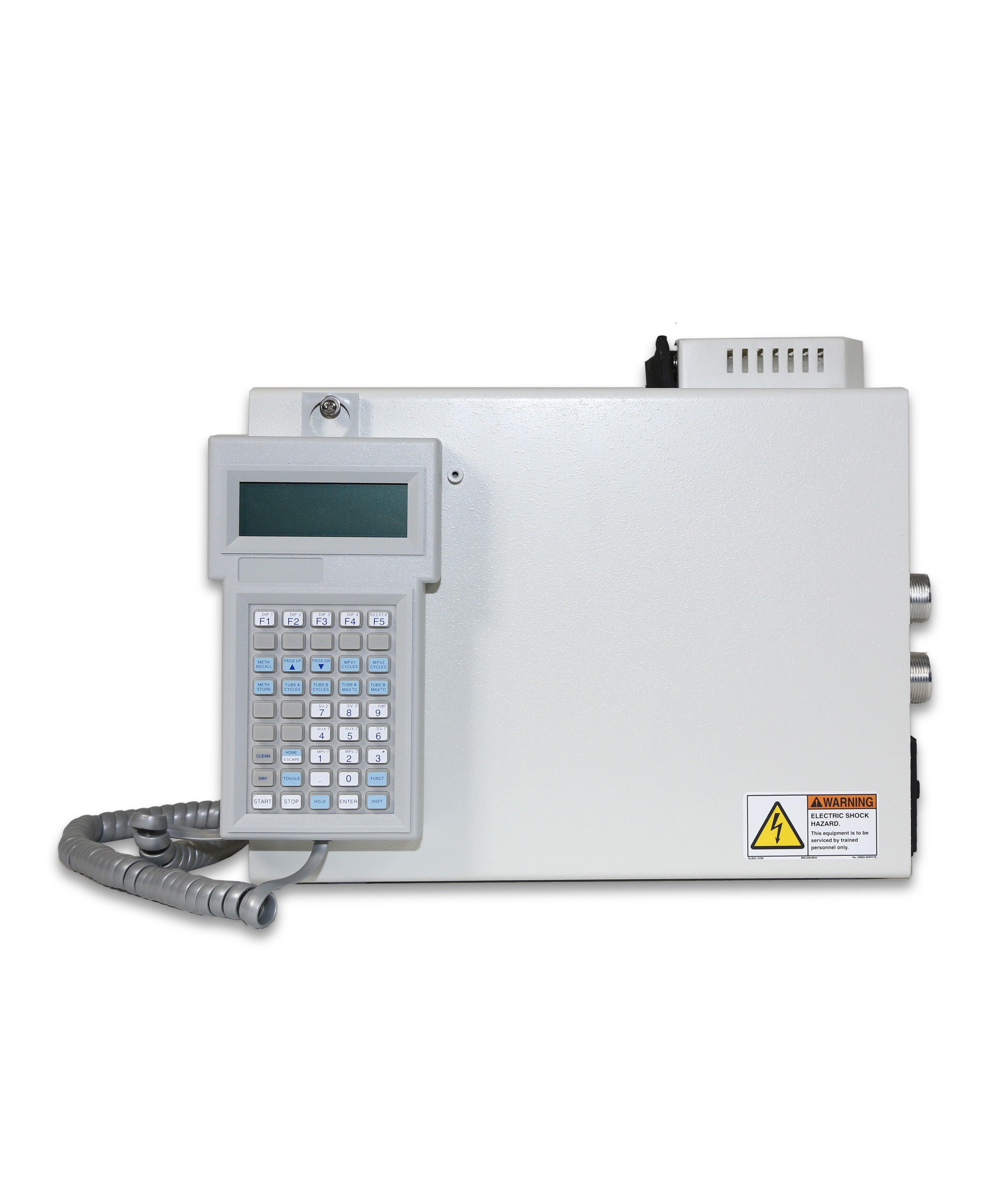

The CDS 9305 Thermal Desorption system adds a Mass Flow Controller (MFC) for near-real time sampling. It features a hand-held controller for system maintenance and direct communication. With the highest programmable valve temperature on the market (350°C), the 9305 can venture into applications where other systems can not perform, including VOCs, sVOCs, polar and nonpolar compounds. The two stage trapping and desorption process with Pre-desorb and Pre-heat feature eliminate the need of any Peltier cooling or liquid cryogen to improve the resolution for early eluting molecules. An optional heated sampling line is available to collect air samples.
Specifications
Programmable Time: 0 – 999.9 minutes
Focus Trap:
Yes (Standard 1/8" Vocarb)
Optional: 6 mm Tenax-TA
Dynamic Range: C₂ – C₃₃⁺
Cryogen: Not required (Standard pre-desorb)
Temperature Accuracy: ±1 °C
Tube Heating Rate: 1000 °C/min
Trap Heating Rate: 900 °C/min
Valve Oven Temperature: Up to 350 °C
Transfer Line Temperature: Up to 350 °C
Sample Desorption Temperature: Up to 400 °C
Focus Desorption Temperature: Up to 400 °C

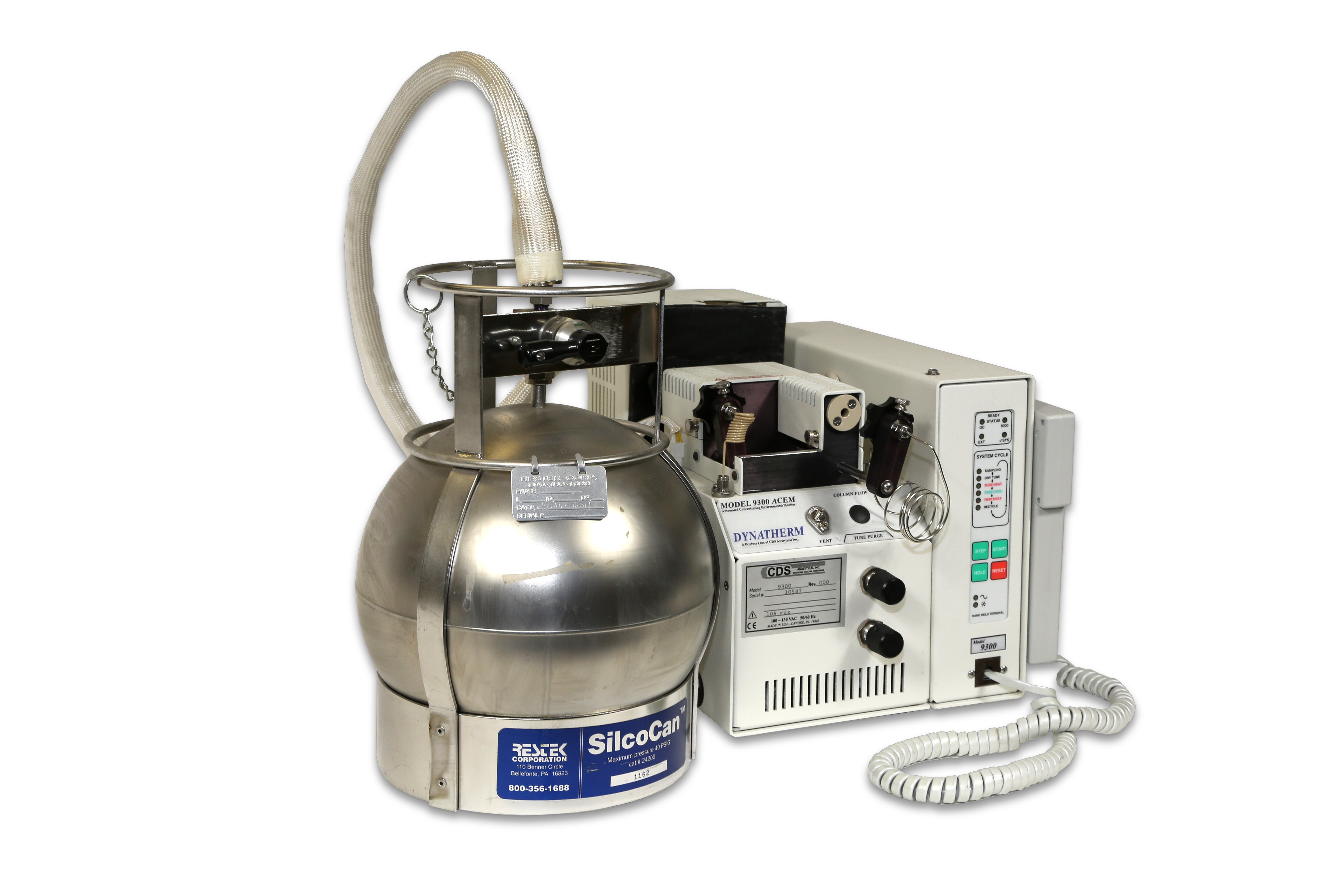

On-Line Sampling: Near–real time, single tube
GC Connection: Heated transfer line
Weight: 19 kg
Dimensions (W × H × D): 13" × 11" × 18"
