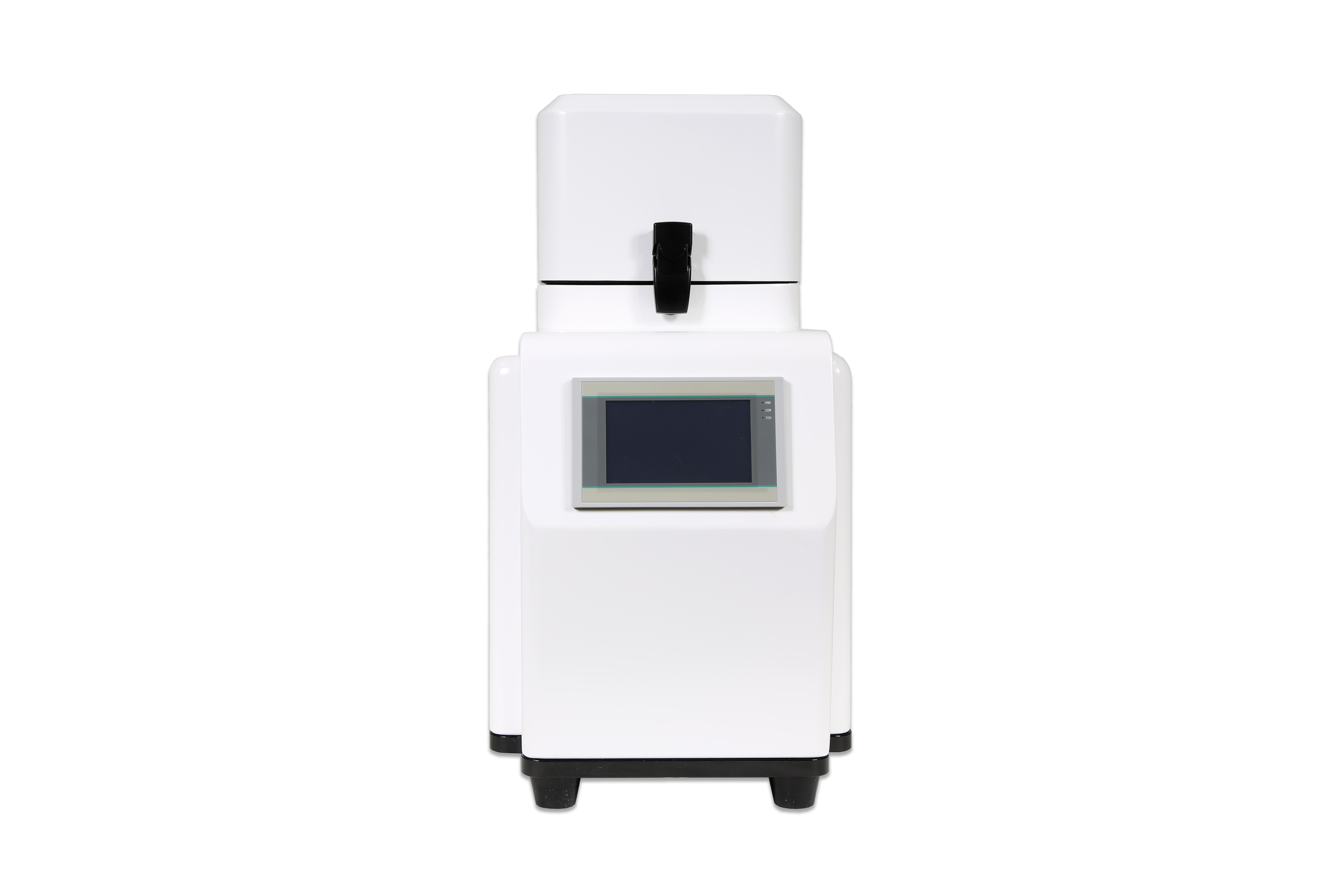

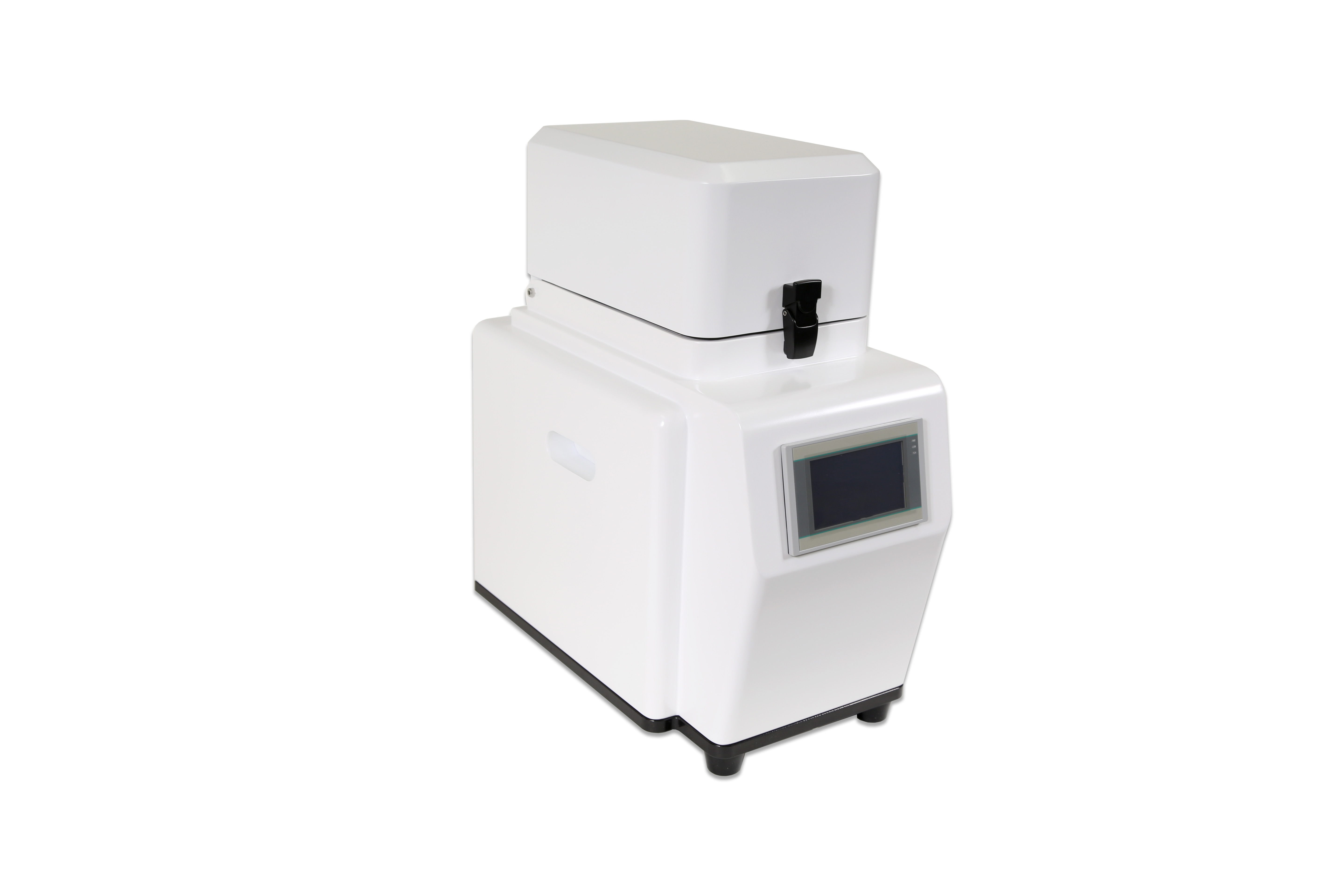

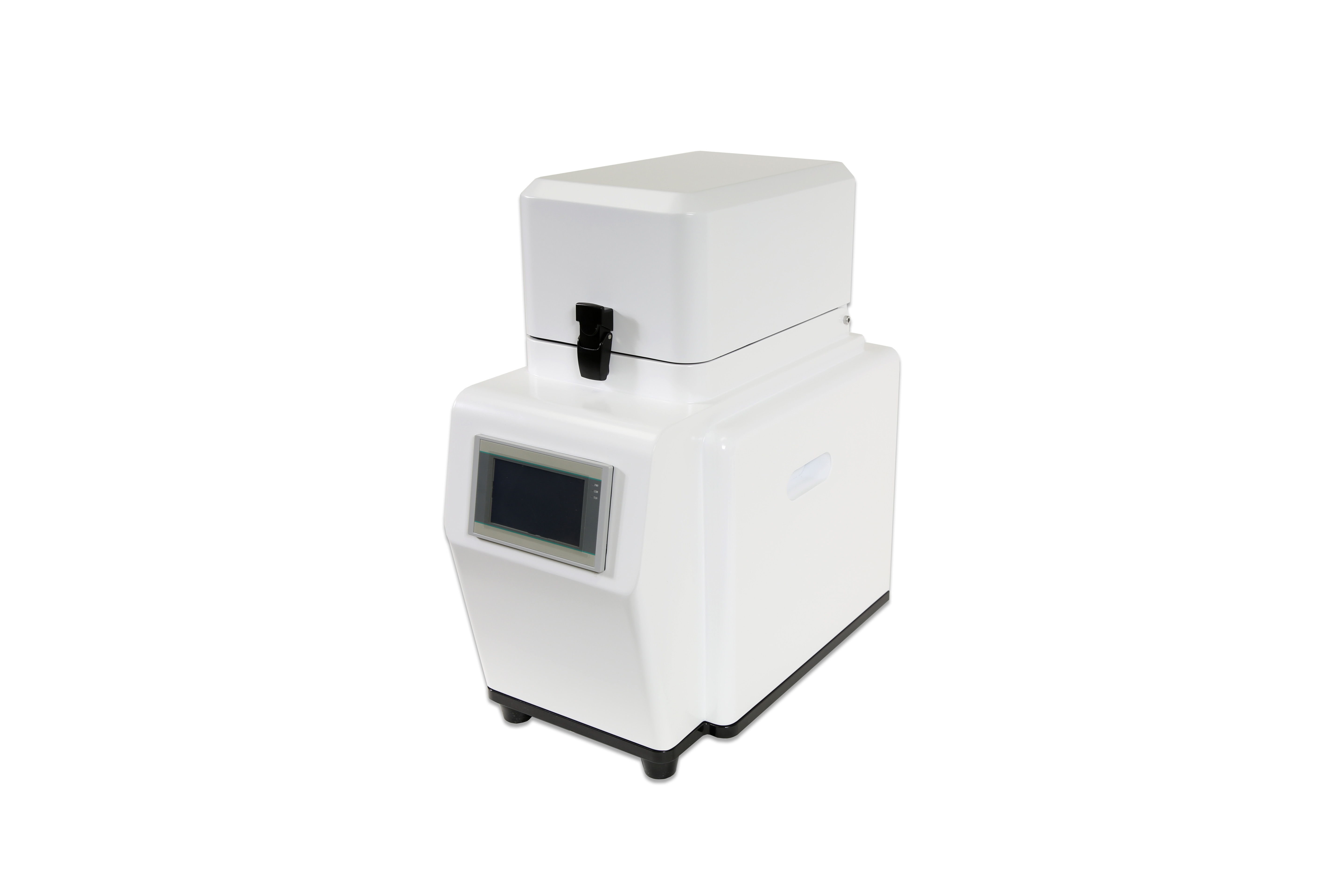

A distinct advantage of analytical pyrolysis GC-MS (PY-GC-MS) in polymer analysis is a simplified sample preparation process by skipping the solvent extraction and concentration step. However, the challenging hurdle in the sample preparation for PY-GCMS is to homogenize the polymer samples, which would determine the reproducibility of the following sample runs. As the rule of thumb for PY-GC-MS, more homogenized samples would yield more reproducible data. Among various homogenizers, cryogenic ball mill has been proven to be a powerful tool in homogenizing thermally sensitive and elastic polymers. CDS Analytical has designed an economical and ready-to-use cryo-mill solution for such applications.
Specifications

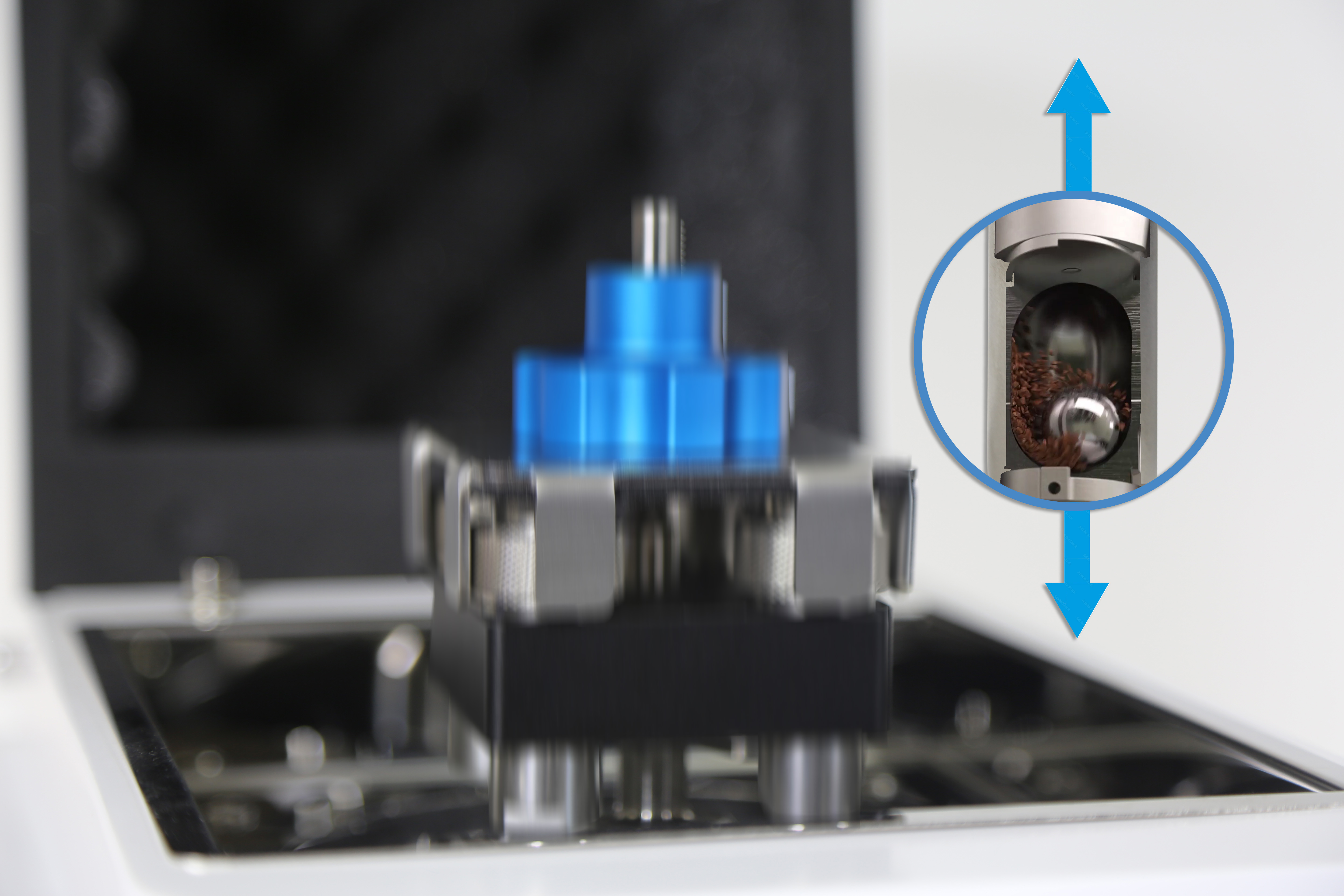

Grinding Technology: Ball grinding, vertical oscillation
Max Frequency: 70 Hz
Temperature Range: Liquid nitrogen (–196°C)
Capacity: 4 channels using 5 mL sample jars
Grinding Ball: 9.6 mm zirconia
Finish Powder (8 runs): 5 micron
Feed-in Sample Size: <8 mm
Weight: 25 kg
Dimensions (W × H × D): 260 mm × 470 mm × 380 mm
Accessories Included:

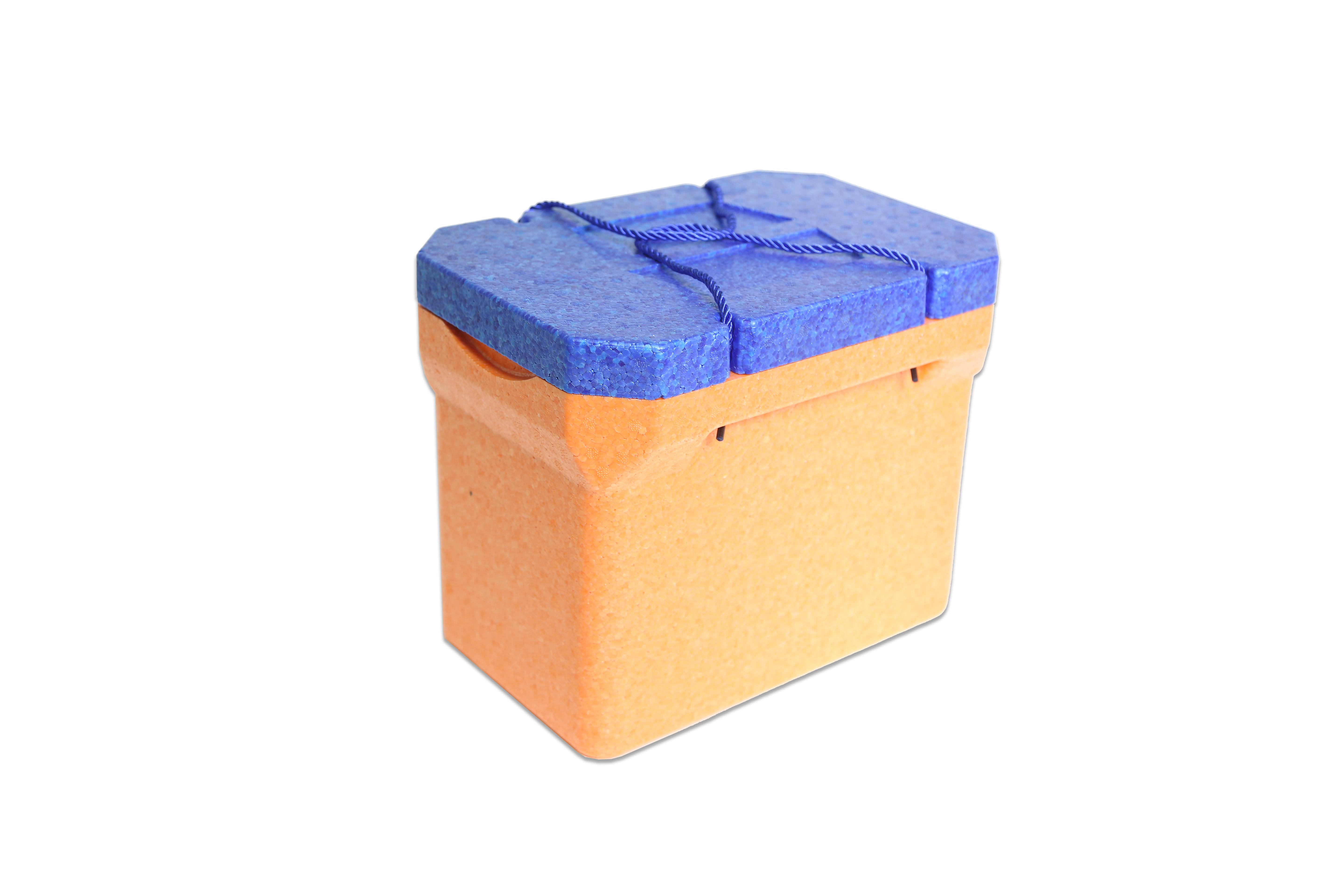

Liquid nitrogen reservoir
Metal tongs
4× 5 mL titanium sample vessels
5× 9.6 mm stainless steel grinding balls
Sample rack and cover
