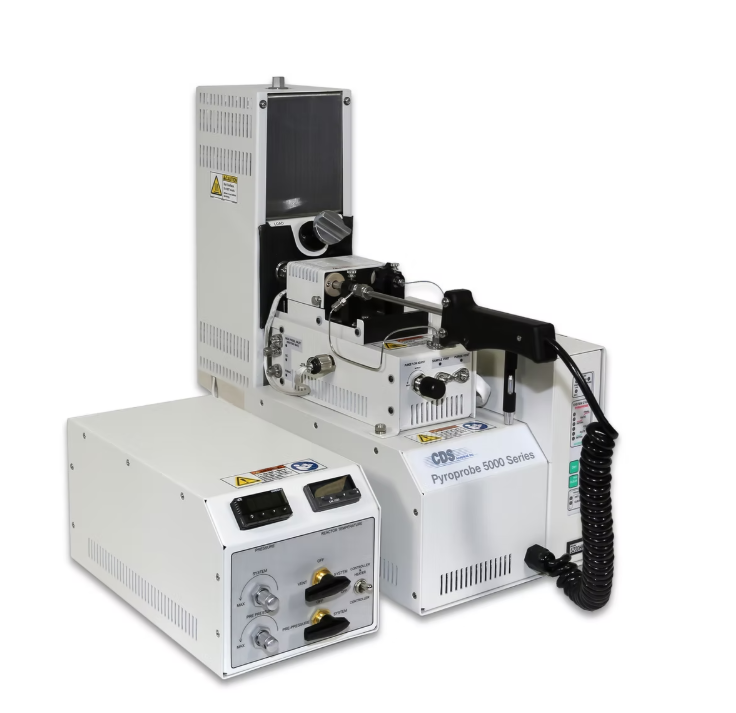

The CDS HPR Pyroprobe enables users to study both high temperature and pressure in a micro-scale environment, with the convenience of results sent directly to their GC/MS for Pyrolysis - Gas Chromatography - Mass Spectrometry (Py-GC-MS). The unit is built on 5200 platform with a backpressure regulator and heated catalyst bed. Samples can be pyrolyzed at max 500 PSI (3400 kPa), passed through a user-selectable catalyst bed, and collected onto the built-in trap.
Specifications
Programmable Time: 0 – 999.9 minutes
Trap: Yes, Standard Tenax-TA
Additional Trap Option: Cryotrap available
Temperature Range: Up to 1400°C
Temperature Accuracy: ±1°C
Heating Rate:
0.01°C/ms to 20°C/ms
0.01°C/sec to 999.9°C/sec
0.01°C/min to 999.9°C/min
Probe Clean: Yes – User-selectable
Probe Dry: Yes – User-selectable
System Max Pressure: 500 PSI (3.4 MPa)
Reactor Max Temperature: 800°C
Catalyst Volume: 6 mm × 75 mm (2 mL total volume)
Interface Type: Low Thermal Mass
Interface Temperature: Up to 350°C
Interface Heating Rate: 1°C/min to 100°C/min
GC Connection: Heated transfer line (up to 350°C)
Weight: 25 kg
Dimensions (W × H × D): 280 mm × 670 mm × 480 mm
Options:
Steam
Cryotrap
