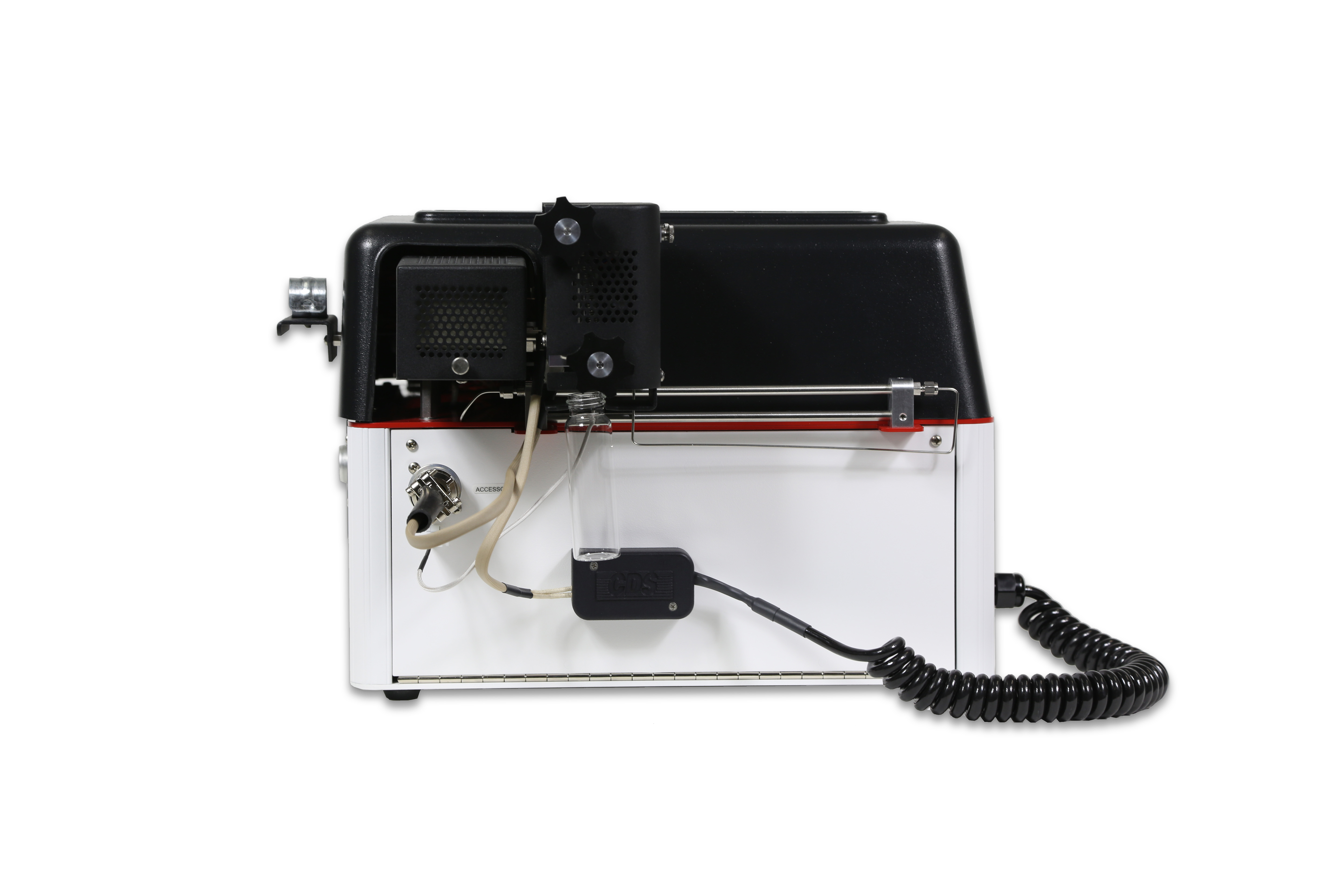

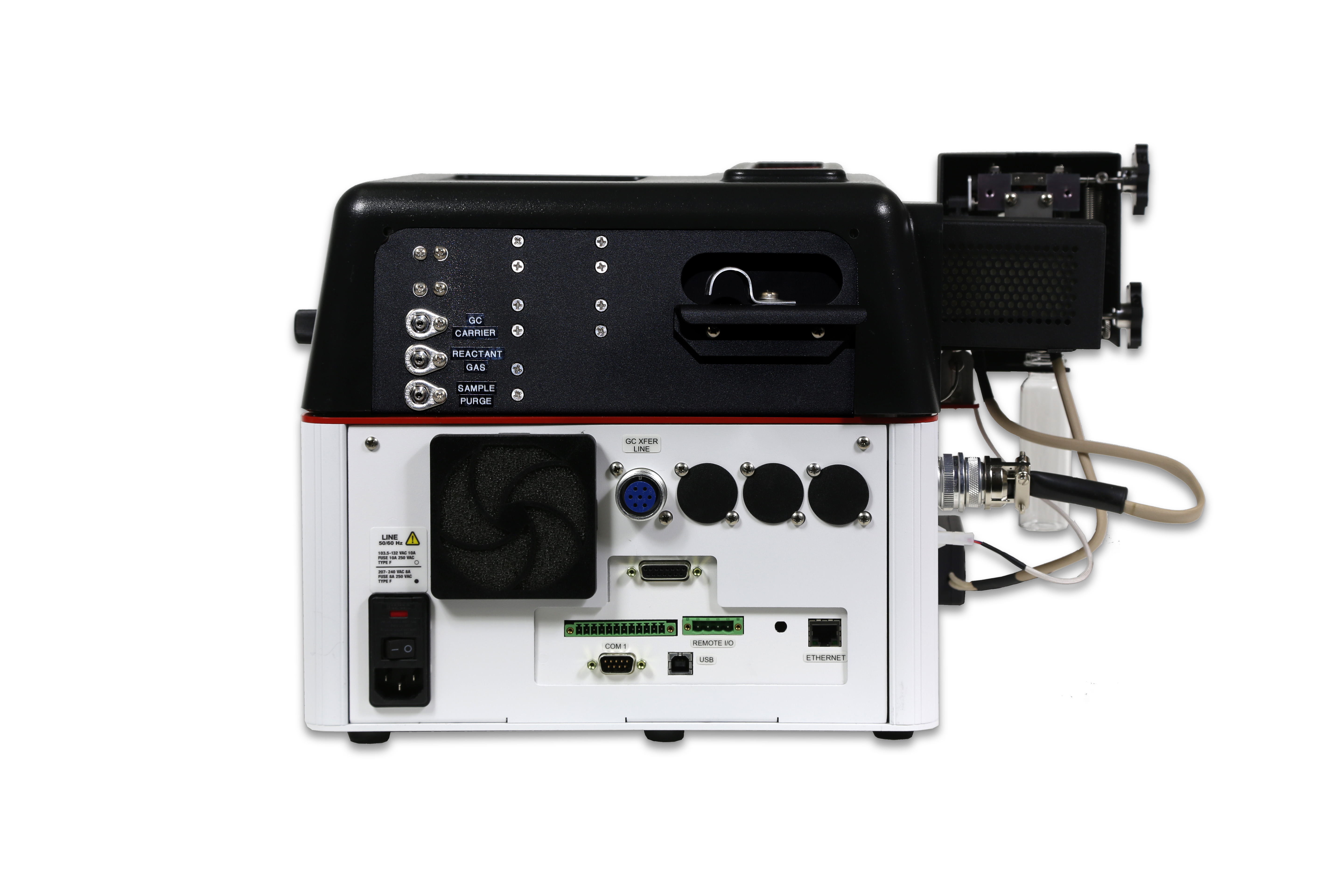

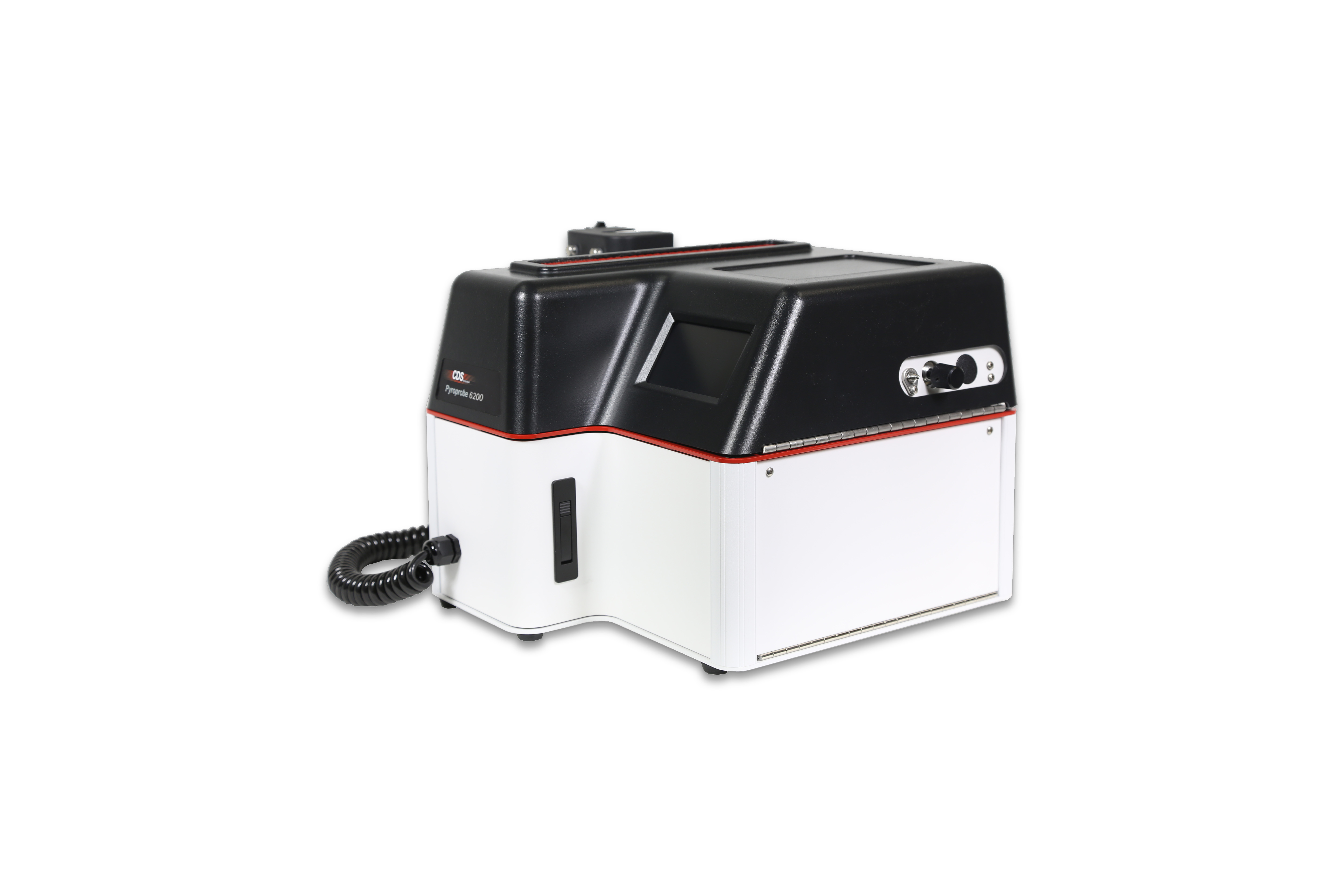

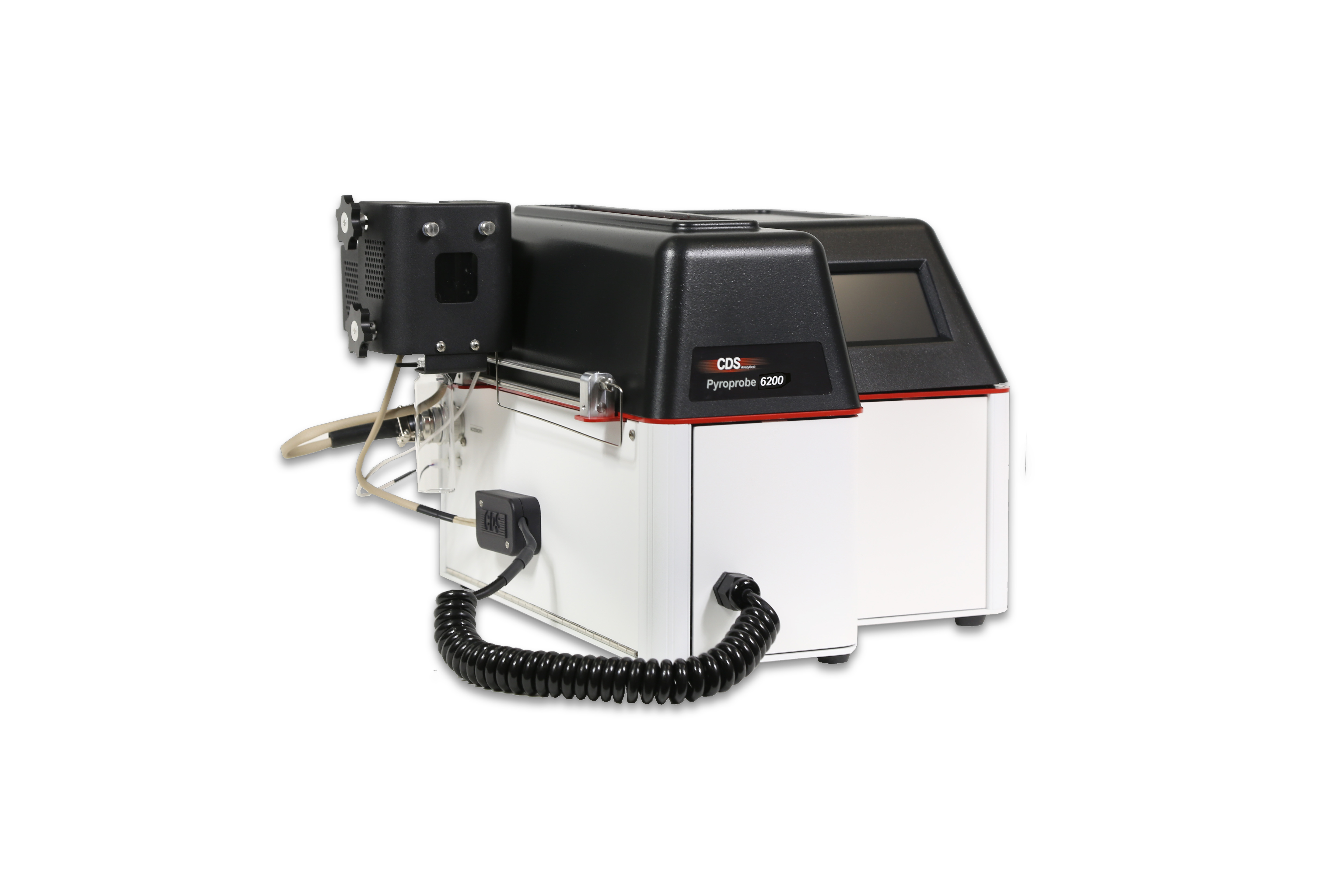

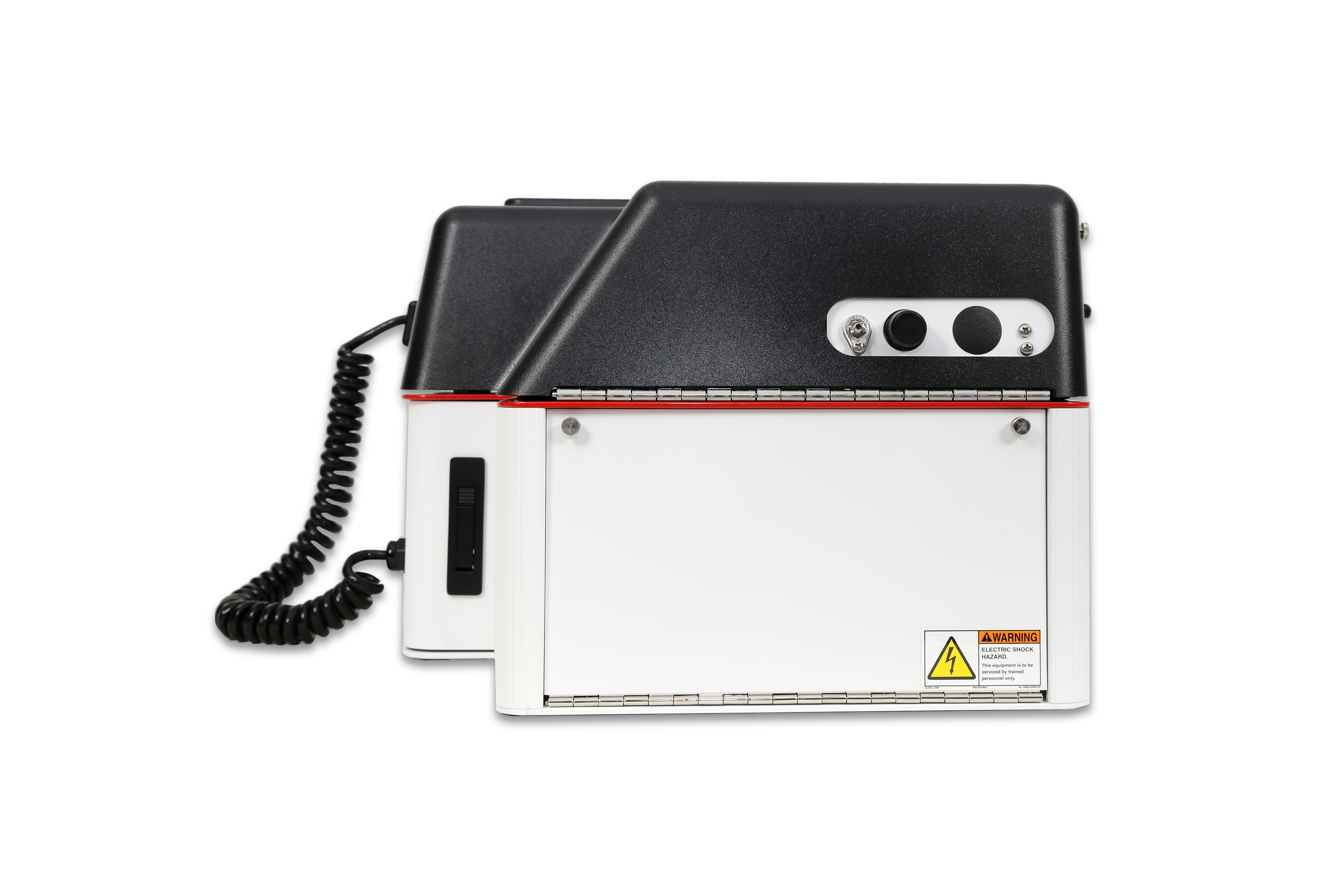

The CDS Model 6200 Pyroprobe adds in an analytical trap to enable collecting analytes using slow rate pyrolysis for Pyrolysis - Gas Chromatography - Mass Spectrometry (Py-GC-MS). The built-in trap also expands the capability to use a reactant gas (like oxygen and air), and perform thermal desorption on sorbent tubes or larger samples. The 6200 also permits direct pyrolysis to the GC in GC carrier gas. The 6200 is equipped with Drop-In-Sample-Chamber (DISC) technology with easy sample loading and 1.5% RSD.
Specifications
DISC Technology: Standard
Trap: Standard Tenax-TA
Temperature Range: Up to 1300°C
Temperature Accuracy: ±0.1°C
Reactant Gas: Standard
Heating Rate:
0.01°C/ms to 20°C/ms
0.01°C/sec to 999.9°C/sec
0.01°C/min to 999.9°C/min
Multi-Temperature Steps: Yes – Up to 10 temperature profiles. Enables multiple thermal desorption or pyrolysis steps per sample
GC Connection: Heated transfer line (up to 350°C)
Weight: 17.5 kg
Dimensions (W × H × D): 381 mm × 292 mm × 406 mm
Options:
Autosampler
Thermal Desorption Tube Module
Dynamic Headspace Module
External Reactor Module
Cryotrap (-180°C)
FT-IR Interface (Brill Cell)
1/4" and 1/2" Manual Probe
Electronic Mass Flow Controller (N₂, O₂, Air, CO₂, He – Calibrated)
