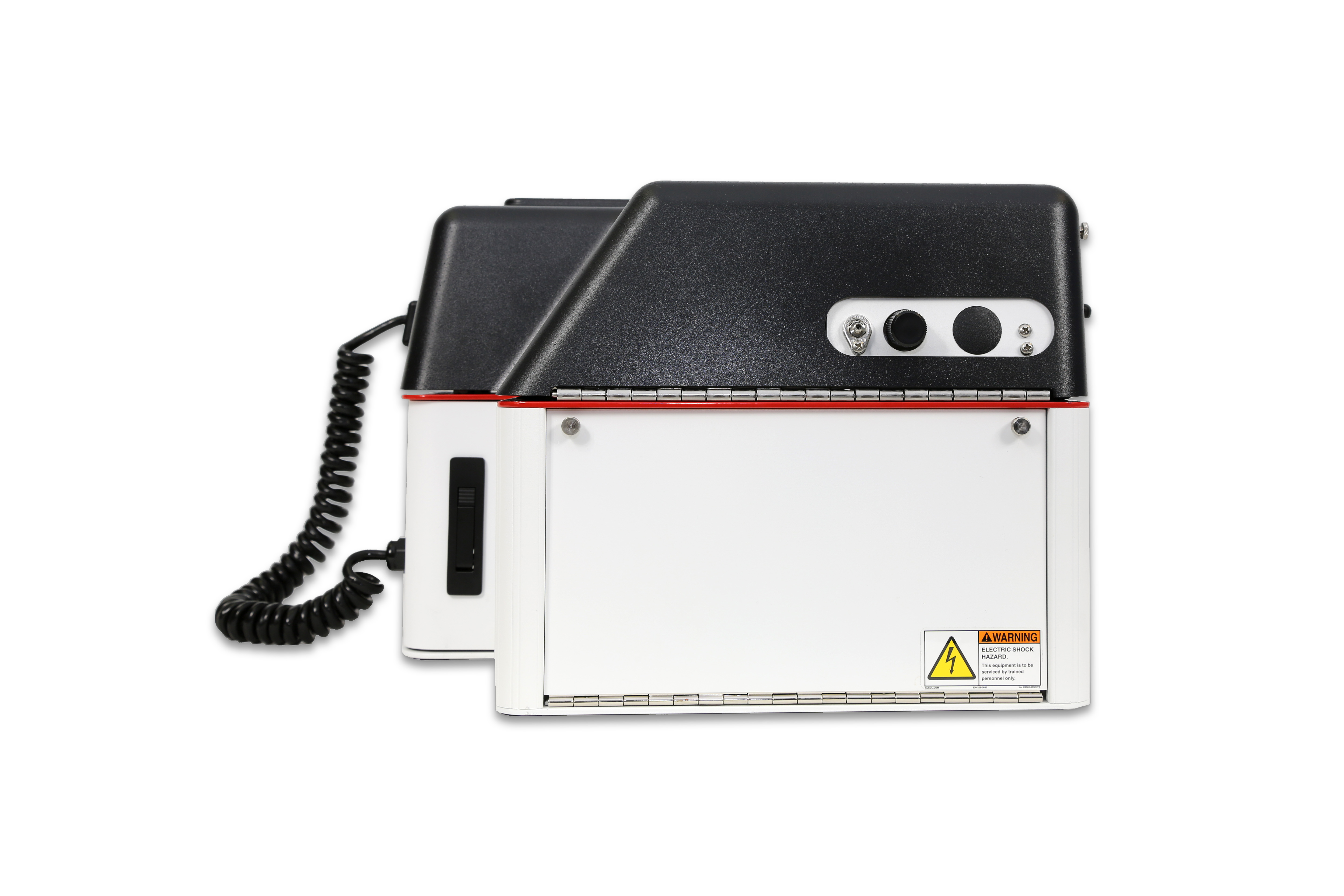

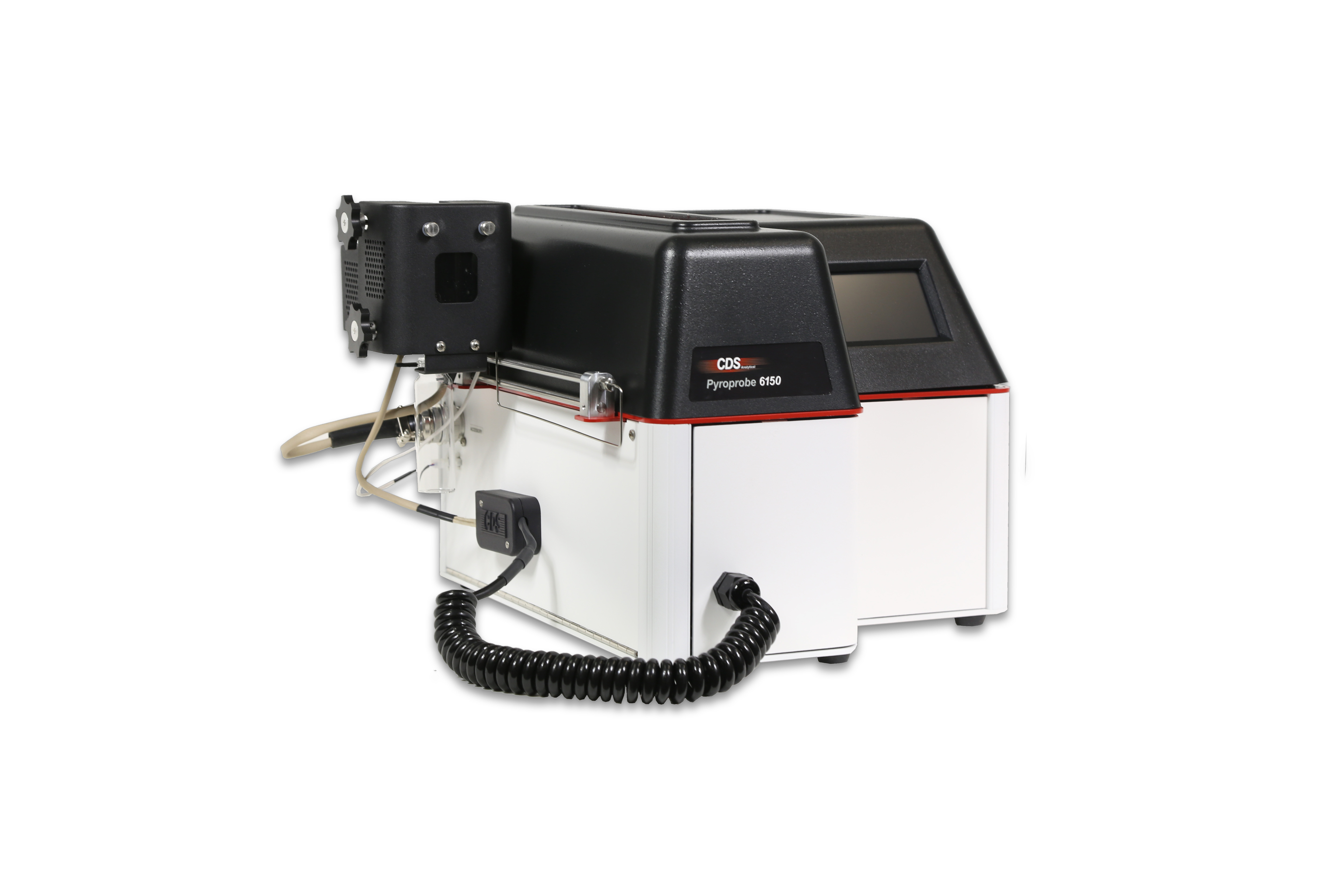

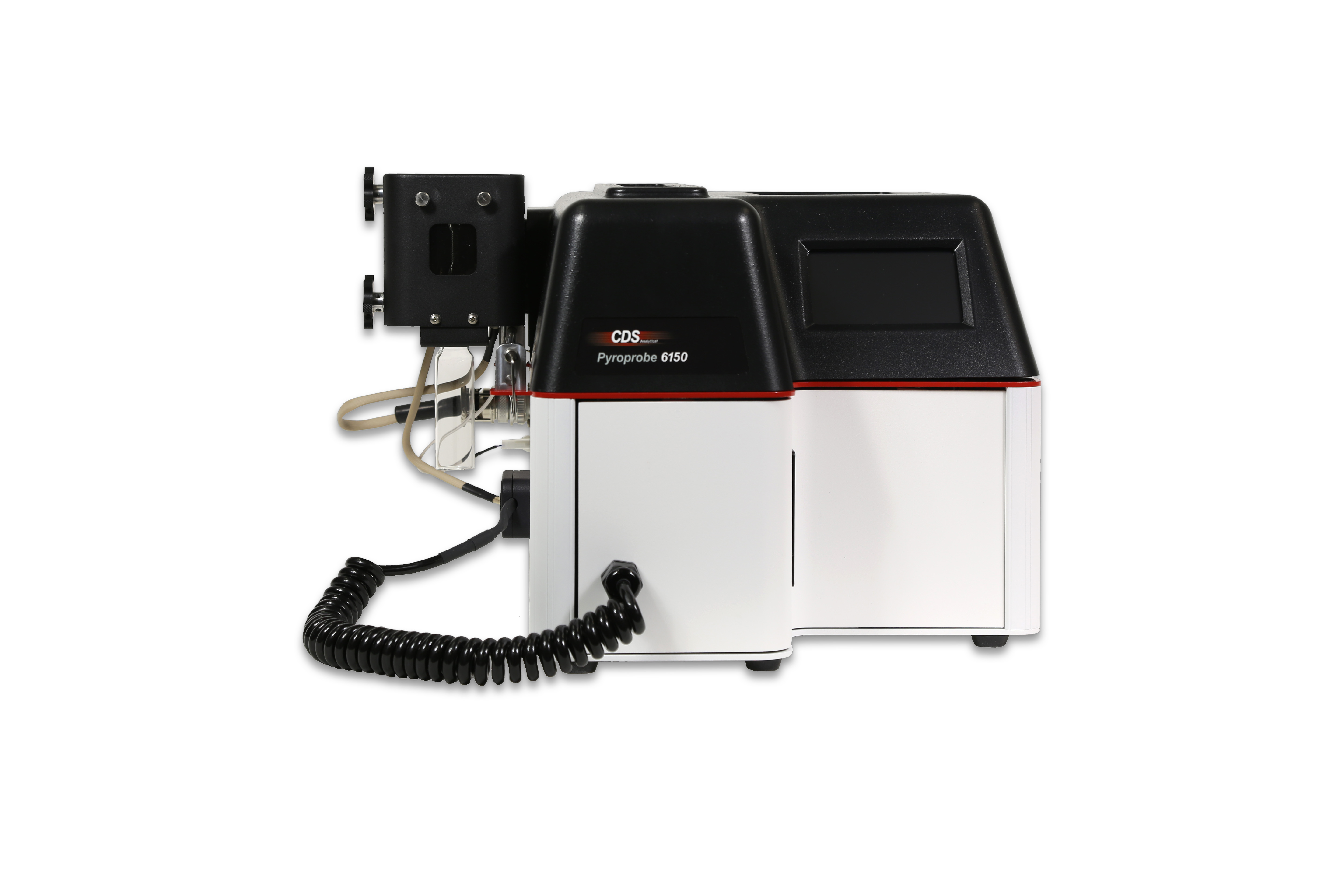

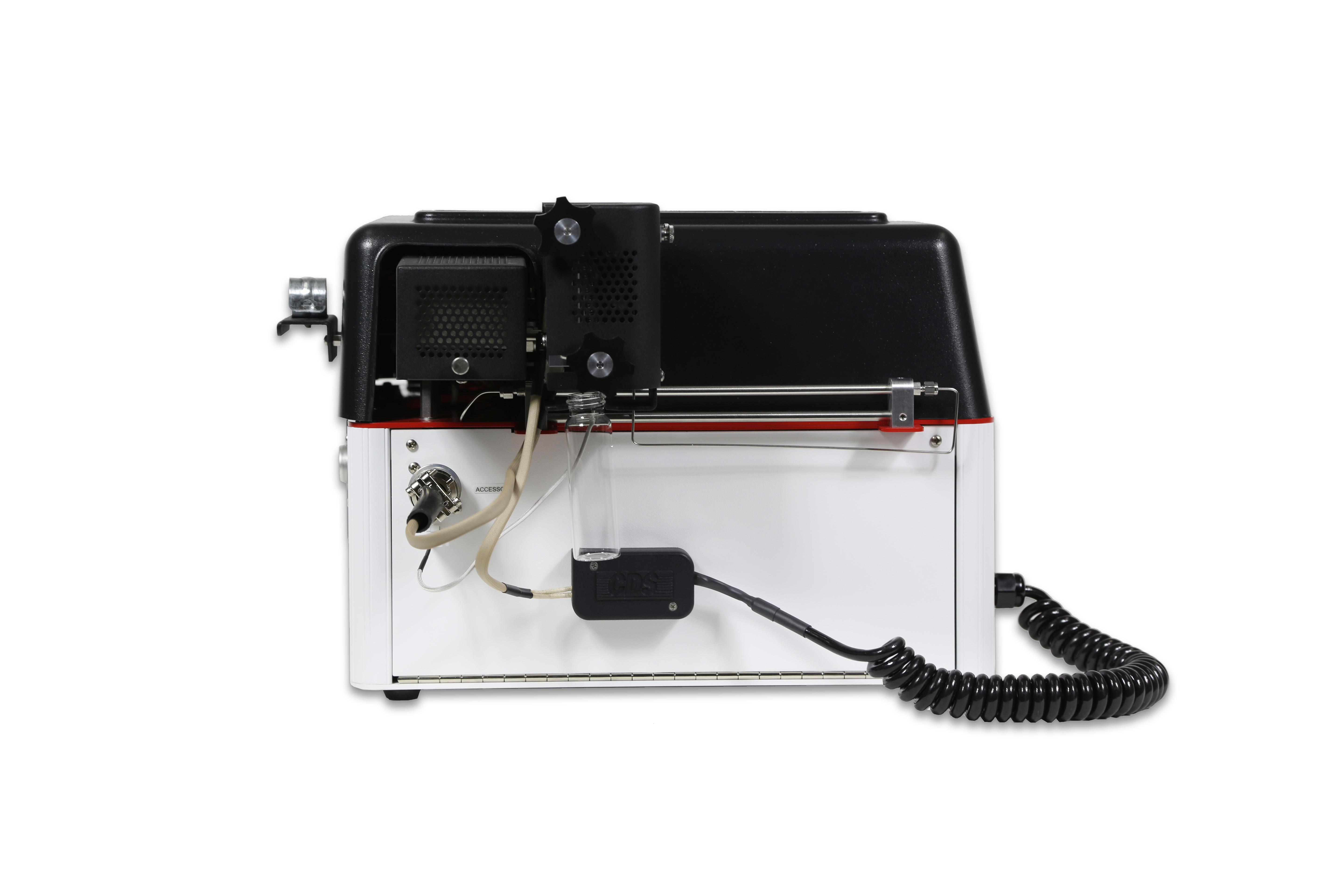

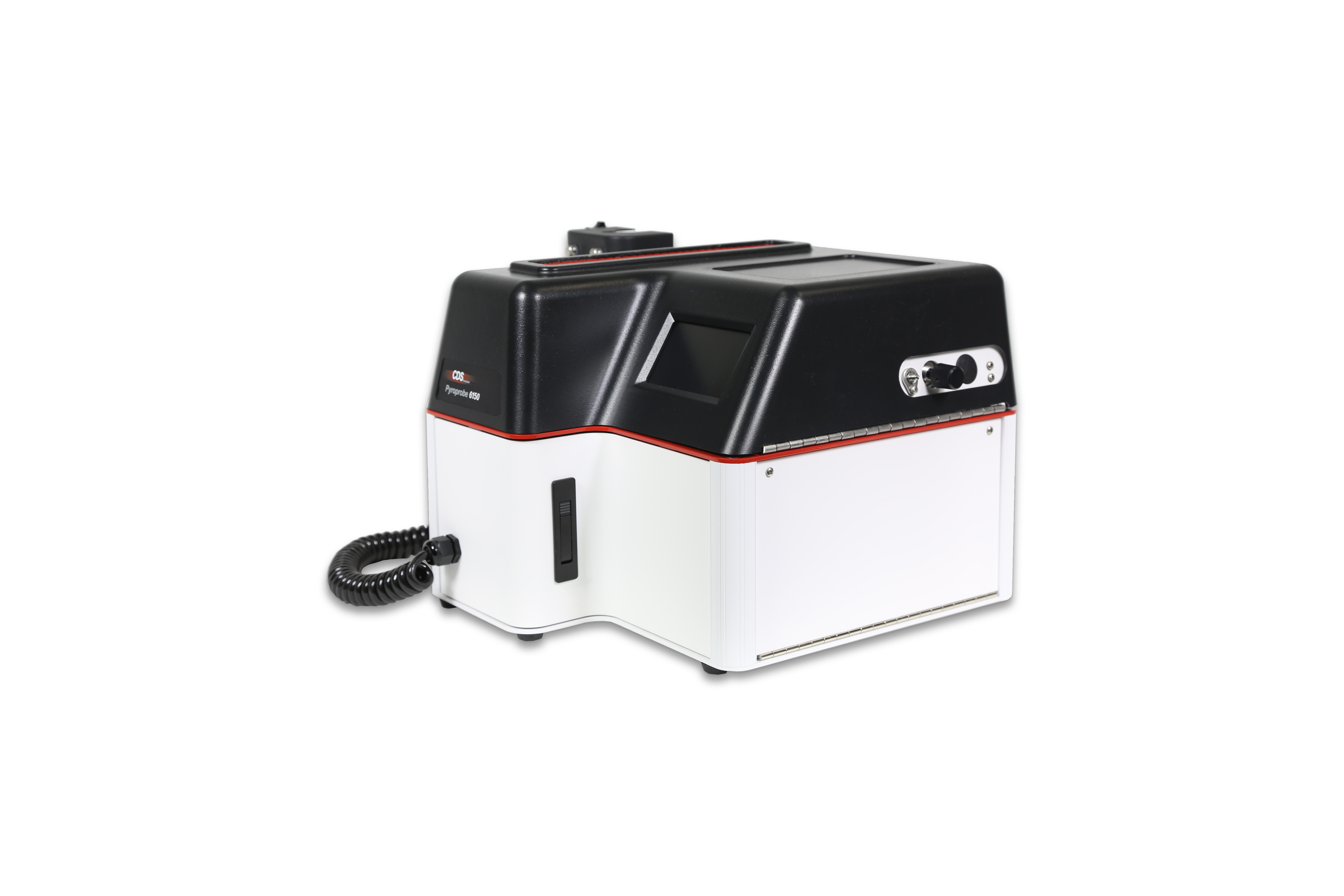

The CDS Model 6150 Pyroprobe is the basic model of CDS's 6th generation Pyroprobe for Pyrolysis - Gas Chromatography - Mass Spectrometry (Py-GC-MS). The 6150 is equipped with Drop-In-Sample-Chamber (DISC) technology with easy sample loading and 1.5% RSD. The system connects to any model GC with a heated sample line for easy on/off installation.
Specifications
DISC Technology: Standard
Trap: No
Temperature Range: Up to 1300°C
Temperature Accuracy: ±0.1°C
Heating Rate:
0.01°C/ms to 20°C/ms
0.01°C/sec to 999.9°C/sec
0.01°C/min to 999.9°C/min
RSD: 1.5% (Polystyrene)
Multi-Temperature Steps: Yes – Up to 10 temperature profiles. Enables multiple thermal desorption or pyrolysis steps per sample
GC Connection: Heated transfer line (up to 350°C)
Weight: 16.3 kg
Dimensions (W × H × D): 381 mm × 292 mm × 406 mm
Options:
Autosampler
1/2" Coil Probe
1/4" Ribbon Probe
1/4" Coil Probe
FT-IR Probe (Brill Cell)
