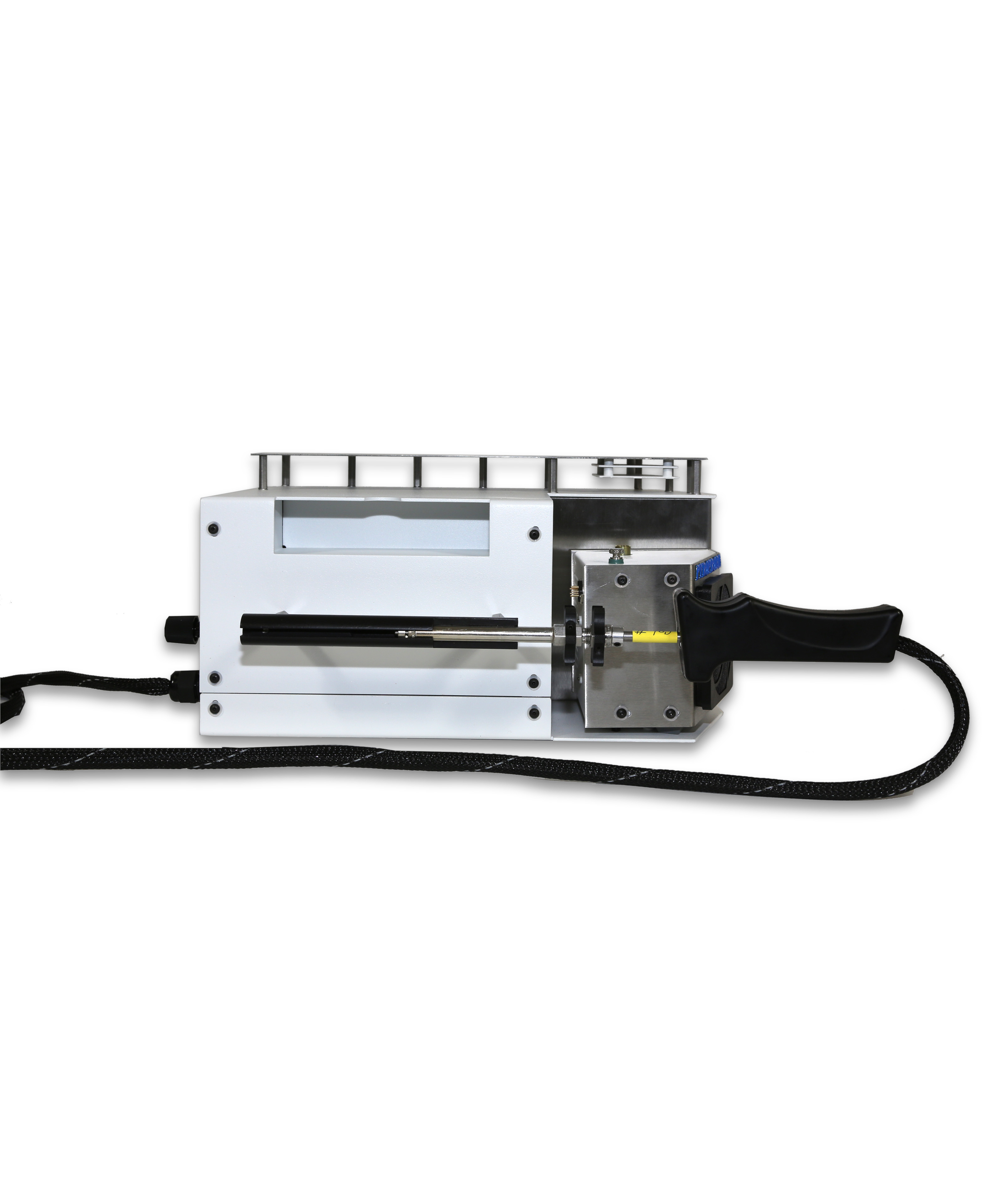

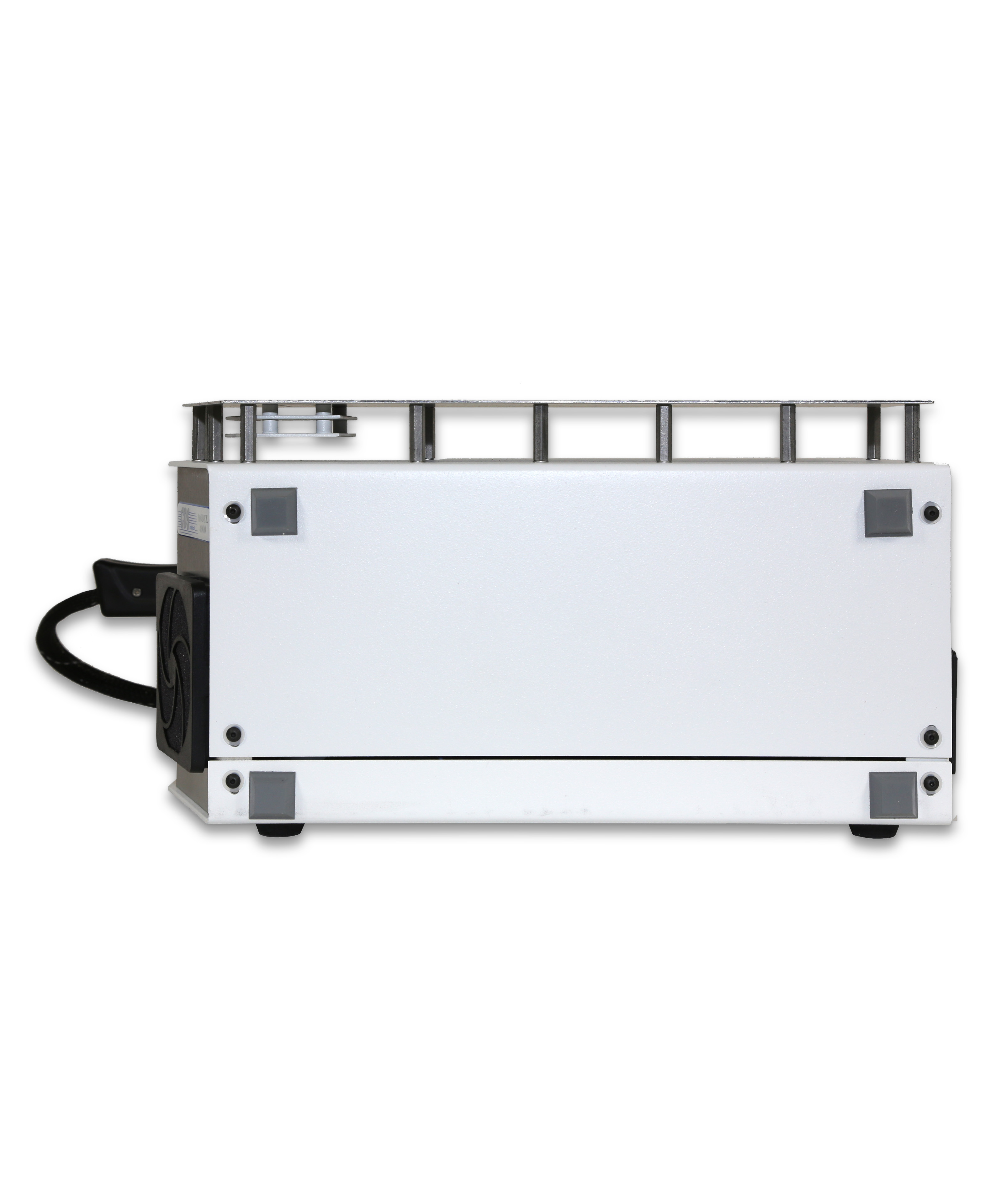

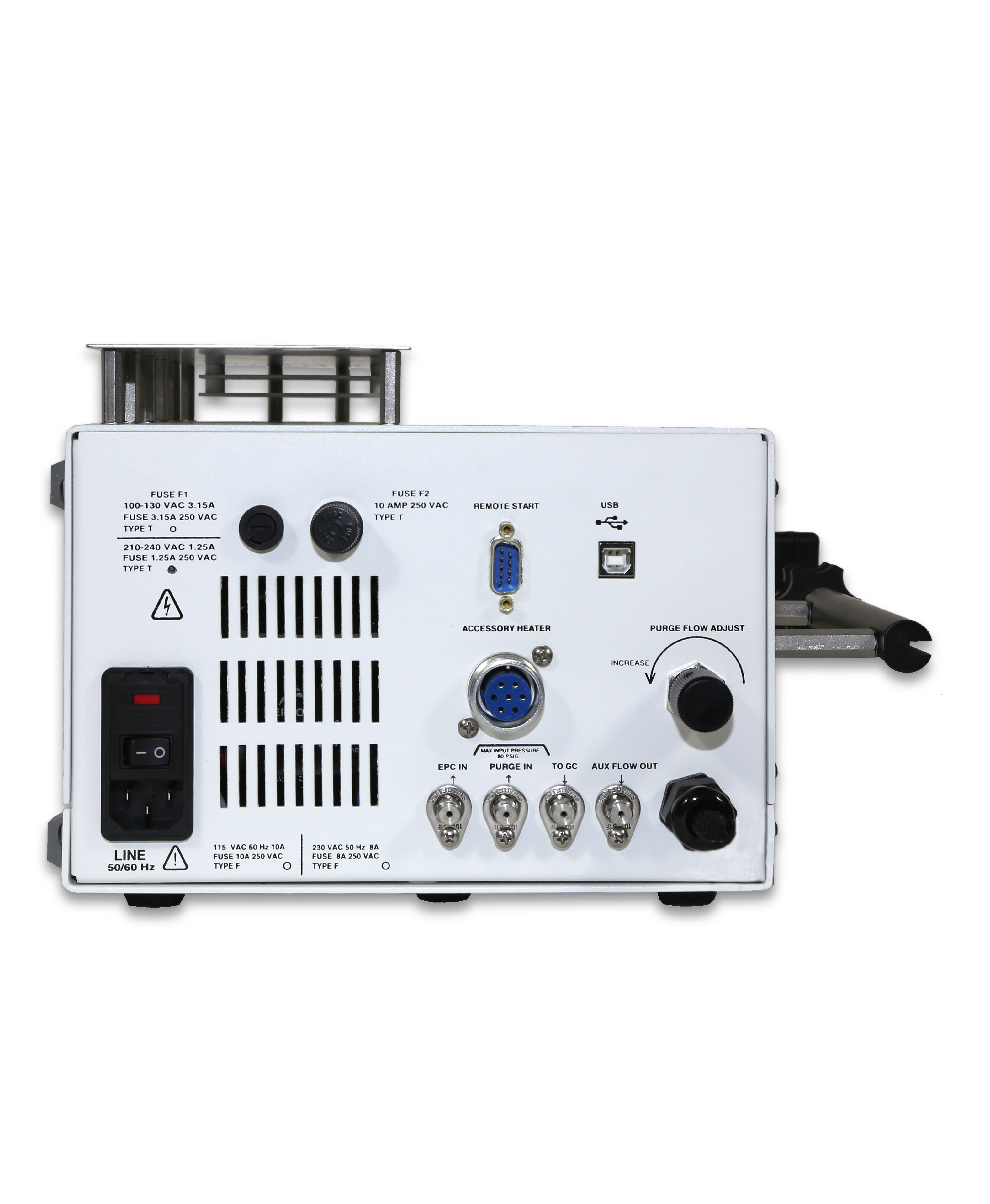

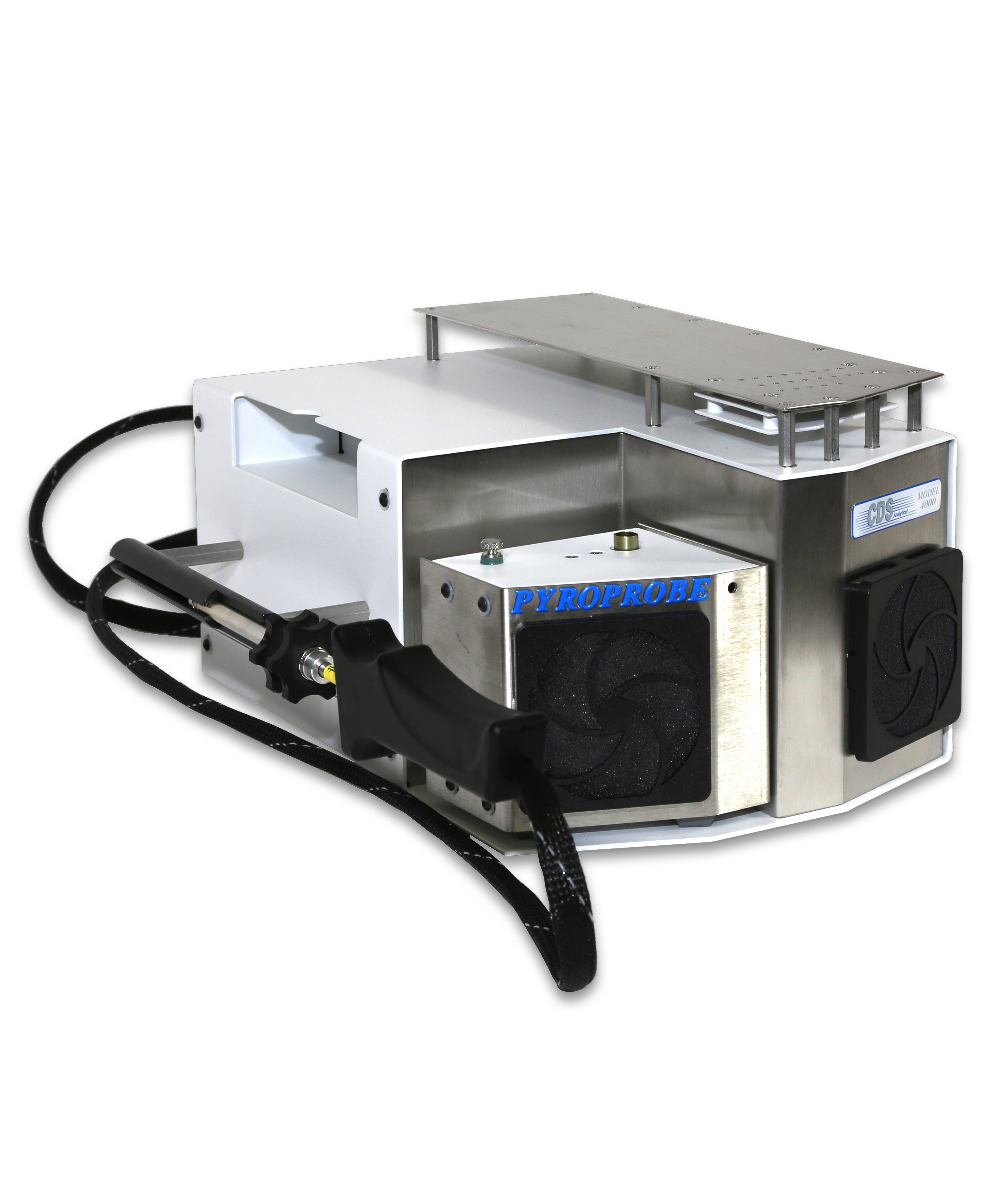

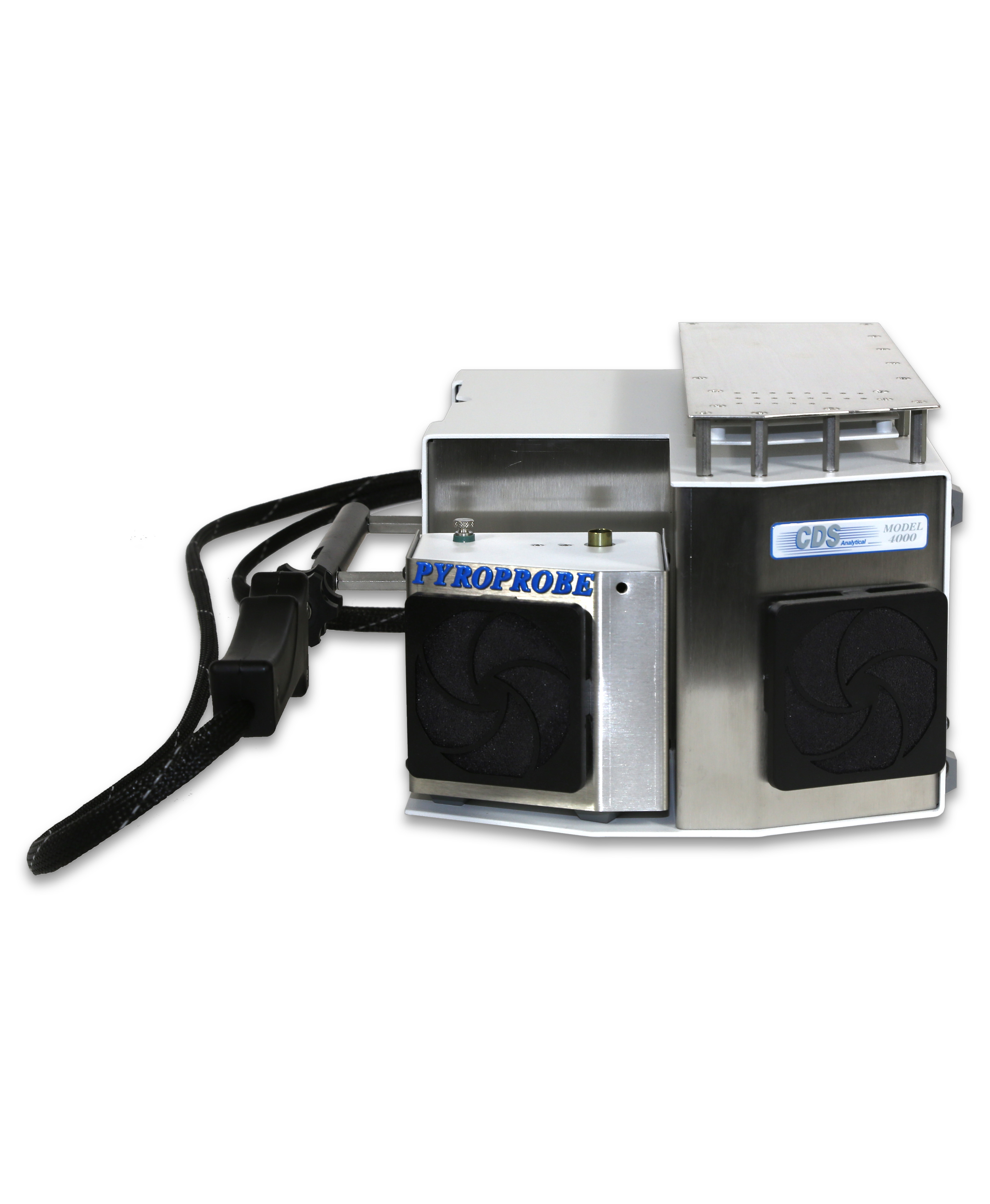

The CDS Model 4000 Pyroprobe is specifically designed for users that occasionally need pyrolysis to assist their work in Pyrolysis - Gas Chromatography - Mass Spectrometry (Py-GC-MS). The 4000 has an economical price tag, and possesses a direct GC injection port mount feature to simplify the operation and installation. Installation and removal only takes minutes on conventional GC.
Specifications
Programmable Time: 0 – 999.9 minutes
Trap: No
Temperature Range: Up to 1300°C
Temperature Accuracy: ±1°C
Heating Rate:
0.01°C/ms to 20°C/ms
0.01°C/sec to 999.9°C/sec
0.01°C/min to 999.9°C/min
Probe Clean: Yes
Probe Dry: Yes
Multi-Temperature Steps: No
Interface Type: Low Thermal Mass
Interface Temperature: Up to 350°C
Interface Heating Rate: 1°C/min to 100°C/min
GC Connection: Injection Port Direct Mount
Dimensions (W × H × D): 25 cm × 44 cm × 46 cm
Weight: 9 kg
Options: None
