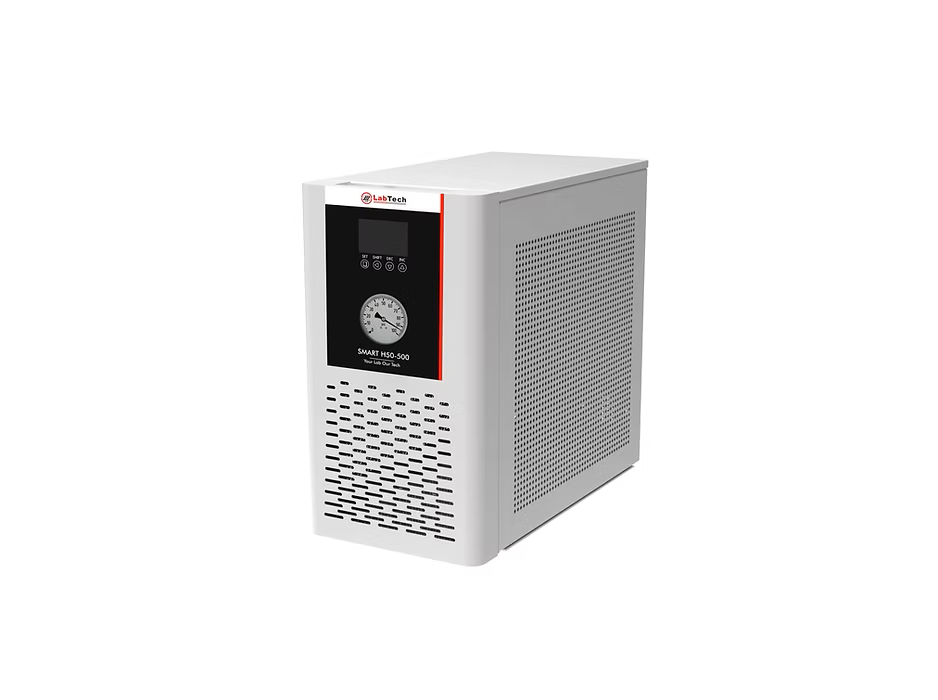

LabTech H50-500 Recirculating Water Chiller, 230V

Combining operational excellence and technological expertise with an intimate understanding of customer needs, LabTech offers the H50-500 recirculating water chiller to ensure accurate and constant cooling conditions for instrumentation.

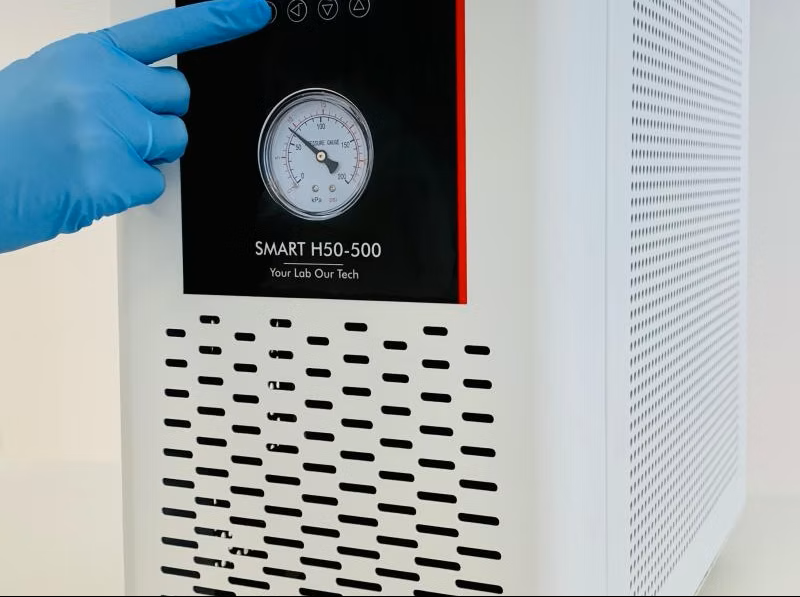

The chiller is provided with an electronic display to monitor and control instrument temperature from -5-35°C, and is designed to operate on 230V/50/60Hz with a standard 230V US plug for use with similar electrical requirements. It has a PID Temperature control mode to provide Temperature Stability at +/-0.3℃ with efficient compressor cooling. Cooling capacity for the unit is 500W at 25℃ and is ideal for use with rotary evaporation, reflux extraction and other instrument applications. The H50-500 has a pump capacity of 3.5L/min and a max pressure of 10psi for external circulation. The liquid circuity pressure is monitored and controlled via analog pressure indicator.

Furthermore, the unit is provided with a liquid level indicator for maximum safety of operations. The chiller has a built in drain to easily remove the liquid from the internal reservoir and water connections are located on the rear side.

Inquire Now Shop

Key Features
Application & Industries
Resources
Videos

Key Features

Part No. LW500

Temp. Range -5℃～35℃

Temp. Stability ±0.3℃

Temp. Control Mode PID

Cooling Capacity 500W

Pump Flow 3.5L/min

L×W×H 19×8×19 inches

Weight 62 lbs

Power Supply 230V,50Hz

Environmental

Used as a complementary cooling solution for environmental laboratory analytical instruments such as AA, ICP, ICP-MS, Kjeldahl nitrogen analyzers, as well as commonly used laboratory equipment like molecular pumps and diffusion pumps.

Food & Beverage

Used as a complementary cooling solution for the food industry’s fat extractors, analytical instruments such as AA, ICP, ICP-MS, Kjeldahl nitrogen analyzers, and commonly used laboratory equipment including molecular pumps and diffusion pumps.

Pharmaceutical

Used as a complementary cooling solution for pharmaceutical industry equipment such as extraction units, fermenters, and reactors.

Medical

Used as a complementary cooling solution for medical industry equipment such as glove boxes and laser devices.

Semiconductor Analysis

Used as a complementary cooling solution for the semiconductor industry’s medium-sized lasers, inductively coupled plasma mass spectrometers (ICP-MS), and other related equipment.

Disease Control

Used as a complementary cooling solution for disease control laboratories, supporting analytical instruments such as AA, ICP, ICP-MS, Kjeldahl nitrogen analyzers, as well as commonly used laboratory equipment like molecular pumps and diffusion pumps.
